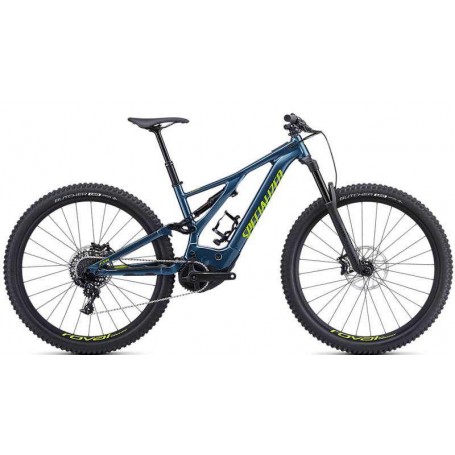

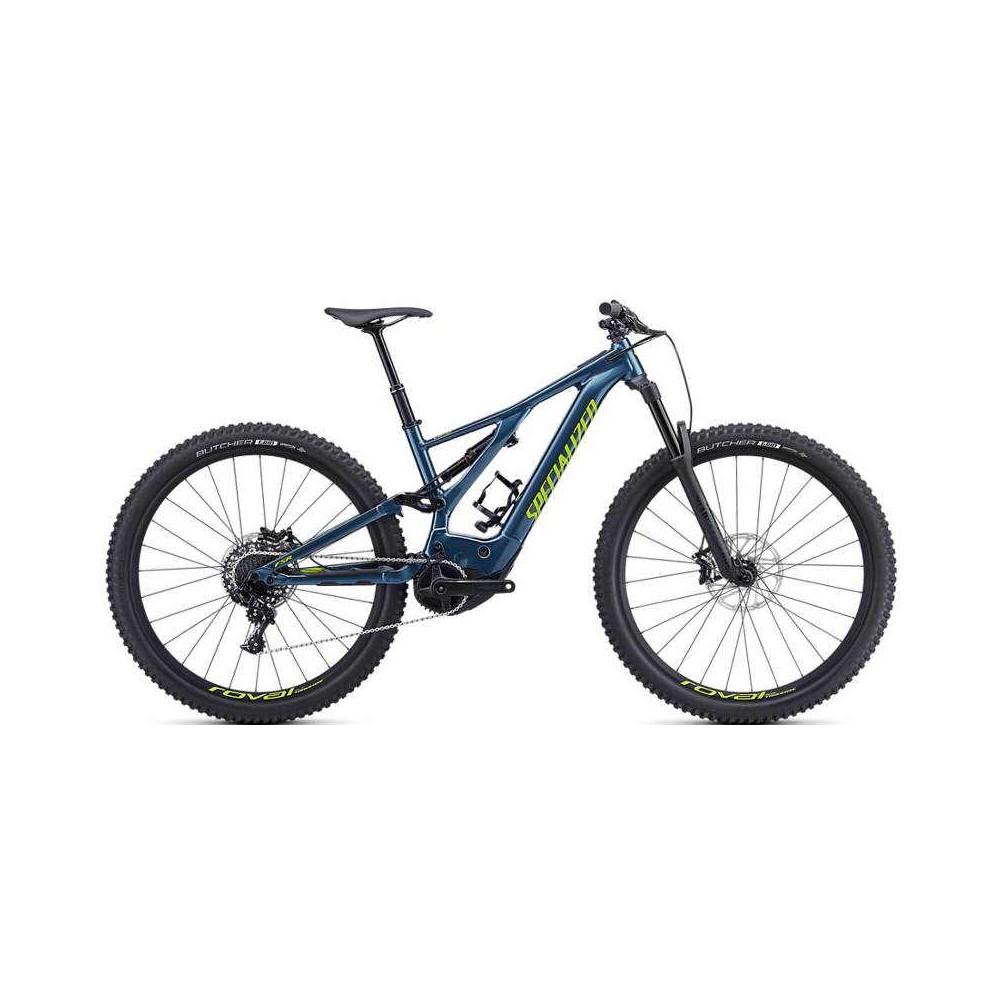

Specialized Turbo Levo Comp Bicycle 2019 (TEST)

Turbo Levo Comp FSR. The aluminum frame of the Levo has been completely redesigned, it has the M5 aluminum main and rear triangle, an asymmetrical design and our Trail 29 Geometry, with the best performance and comfort. It has 500Wh capacity, and of course, it is fully integrated into the frame and easily disassembled.

Technical Specifications:

• CHAIN KMC X11ET, 11-speed w/ Missing Link™
• CRANKSET Praxis, 2D cold-forged alloy, custom offset, 165mm
• SHIFT LEVERS SRAM S700, single-click lever
• CASSETTE SRAM PG-1130, 11-speed, 11-42t
• CHAINRINGS 32T, custom steel
• REAR DERAILLEUR SRAM GX, long cage, 11-speed
• REAR SHOCK RockShox Deluxe RT w/ custom air valve, 150mm of travel
• FRONT HUB Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
• REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
• INNER TUBES Standard, Presta valve
• SPOKES DT Swiss Industry
• RIMS Roval Traverse 29, hookless alloy, 30mm inner width, tubeless ready
• FRONT TIRE Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
• REAR TIRE Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
• SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
• SEATPOST X-Fusion Manic, 34.9mm, 125mm of travel (Small), 150mm of travel (M/XL)
• STEM Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
• HANDLEBARS Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
• GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
• FRONT BRAKE SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
• REAR BRAKE SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
• PEDALS Specialized Dirt
• SEAT BINDER Alloy, 38.6mm
• FORK RockShox Revelation Charger RC, 29" Boost™, 150mm of travel
• FRAME Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
• UI/REMOTE Specialized TCU, 10-LED state of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, handlebar remote with walk-assist
• BATTERY Turbo M2-500, fully integrated w/ rock guard, 500Wh
• CHARGER Custom charger, 42V4A w/ Rosenberger plug
• MOTOR Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal
• WIRING HARNESS Custom Specialized wiring harness

Geometry:

(Sizes M / L)

• CRANK LENGTH 165mm / 165mm
• STEM LENGTH 45mm / 45mm
• SEATPOST LENGTH 150mm / 150mm
• SADDLE WIDTH 143mm / 143mm
• HANDLEBAR WIDTH 780mm / 780mm
• REACH 435mm / 455mm
• TOP TUBE LENGTH, HORIZONTAL 600mm / 631mm
• STACK 606mm / 634mm
• WHEELBASE 1202mm / 1235mm
• CHAINSTAY LENGTH 455mm / 455mm
• FRONT CENTER 749mm / 781mm
• BB DROP 27mm / 27mm
• BB HEIGHT 347.5mm / 347.5mm
• SEAT TUBE ANGLE 74.79° / 74.48°
• HEAD TUBE ANGLE 66.04° / 66.04°
• SEAT TUBE LENGTH 410mm / 455mm
• HEAD TUBE LENGTH 95mm / 125mm
• BIKE STANDOVER HEIGHT 760mm / 781mm
• FORK RAKE/OFFSET 51mm / 51mm
• FORK LENGTH, FULL 560mm / 560mm
• TRAIL 111mm / 111mm

* Specifications are subject to change without notice
