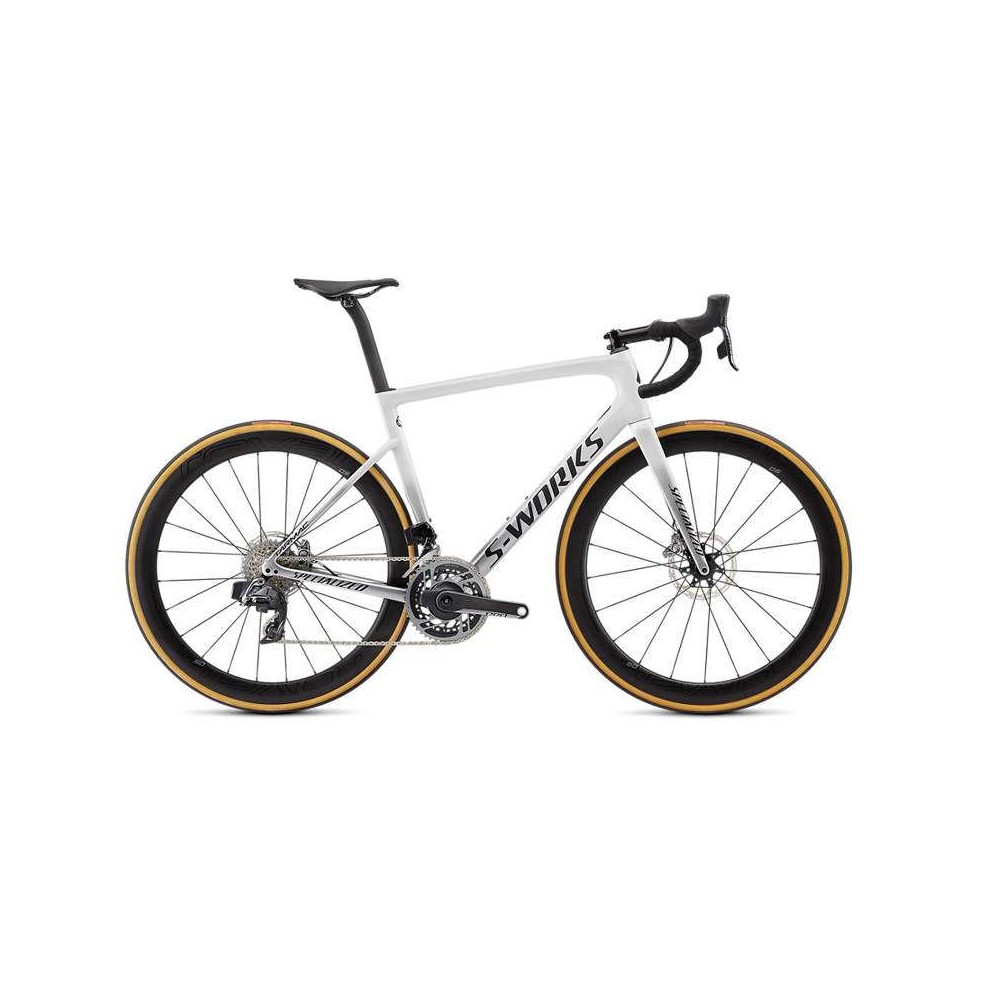

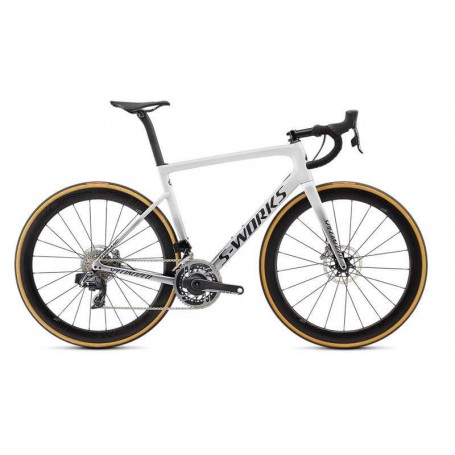

Specialized Tarmac Disc Etap SL6 S-Works Bicycle 2020

Technical Specifications:

• BOTTOM BRACKET SRAM DUB for bb30
• CHAIN SRAM RED 12-speed
• CRANKSET SRAM RED AXS Power Meter, 48/35T
• FRONT DERAILLEUR SRAM RED eTAP AXS, braze-on
• CASSETTE SRAM RED XG-1290, 12-speed, 10-33t
• REAR DERAILLEUR SRAM RED eTAP AXS, 12-speed
• FORK S-Works FACT 12r carbon, 12x100mm thru-axle, flat-mount disc
• SADDLE S-Works Power, carbon rails, carbon base, synthetic leather
• SEAT BINDER Tarmac SL6 clamp assembly
• TAPE S-Wrap Roubaix w/ sticky gel
• SEATPOST S-Works FACT carbon Tarmac seatpost, 20mm offset
• HANDLEBARS S-Works Shallow Bend Carbon, 125mm drop x 75 mm reach
• STEM S-Works SL
• REAR WHEEL Roval CLX 50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, DT Swiss 240 internals, CeramicSpeed bearings, 24h
• INNER TUBES Turbo Ultralight, 60mm Presta valve
• FRONT TIRE Turbo Cotton, 320 TPI, 700x26mm
• REAR TIRE Turbo Cotton, 320 TPI, 700x26mm
• FRONT WHEEL Roval CLX 50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, CeramicSpeed bearings, 21h
• FRONT BRAKE SRAM RED eTAP AXS, hydraulic disc
• REAR BRAKE SRAM RED eTAP AXS, hydraulic disc
• PEDALS Nylon, 105x78x28mm w/ reflectors
• FRAME FACT 12r carbon fiber, Rider-First Engineered™, OSBB, clean routing, internally integrated seat clamp, 12x142mm thru-axle, flat-mount disc

Geometry:

                               (Size 44 / 49 / 52 / 54 / 56 / 58 / 61)

• CRANK LENGTH 165mm 165mm 170mm 172.5mm 172.5mm 175mm 175mm
• STEM LENGTH 70mm 80mm 90mm 100mm 100mm 110mm 110mm
• SEATPOST LENGTH 320mm 320mm 320mm 380mm 380mm 380mm 380mm
• SADDLE WIDTH 155mm 155mm 155mm 143mm 143mm 143mm 143mm
• HANDLEBAR WIDTH 360mm 380mm 400mm 420mm 420mm 440mm 440mm
• REACH 365mm 375mm 380mm 384mm 395mm 402mm 408mm
• TOP TUBE LENGTH, HORIZONTAL 490mm 508mm 531mm 540mm 562mm 577mm 595mm
• STACK 500mm 514mm 527mm 544mm 565mm 591mm 612mm
• WHEELBASE 969mm 973mm 975mm 978mm 990mm 1005mm 1012mm
• CHAINSTAY LENGTH 410mm 410mm 410mm 410mm 410mm 410mm 410mm
• FRONT CENTER 571mm 574mm 577mm 579mm 591mm 606mm 613mm
• BB DROP 74mm 74mm 74mm 72mm 72mm 72mm 72mm
• BB HEIGHT 266mm 266mm 266mm 268mm 268mm 268mm 268mm
• SEAT TUBE ANGLE 76° 75.5° 74° 74° 73.5° 73.5° 73°
• HEAD TUBE ANGLE 70.5° 71.75° 72.5° 73° 73.5° 73.5° 74°
• SEAT TUBE LENGTH 400mm 431mm 462mm 481mm 501mm 522mm 553mm
• HEAD TUBE LENGTH 105mm 115mm 126mm 143mm 163mm 190mm 210mm
• BIKE STANDOVER HEIGHT 730mm 740mm 755mm 775mm 795mm 826mm 850mm
• FORK RAKE/OFFSET 47mm 47mm 47mm 44mm 44mm 44mm 44mm
• FORK LENGTH, FULL 363mm 363mm 363mm 363mm 363mm 363mm 363mm
• TRAIL 71mm 63mm 58mm 58mm 55mm 55mm 52mm

* Specifications are subject to change without notice
