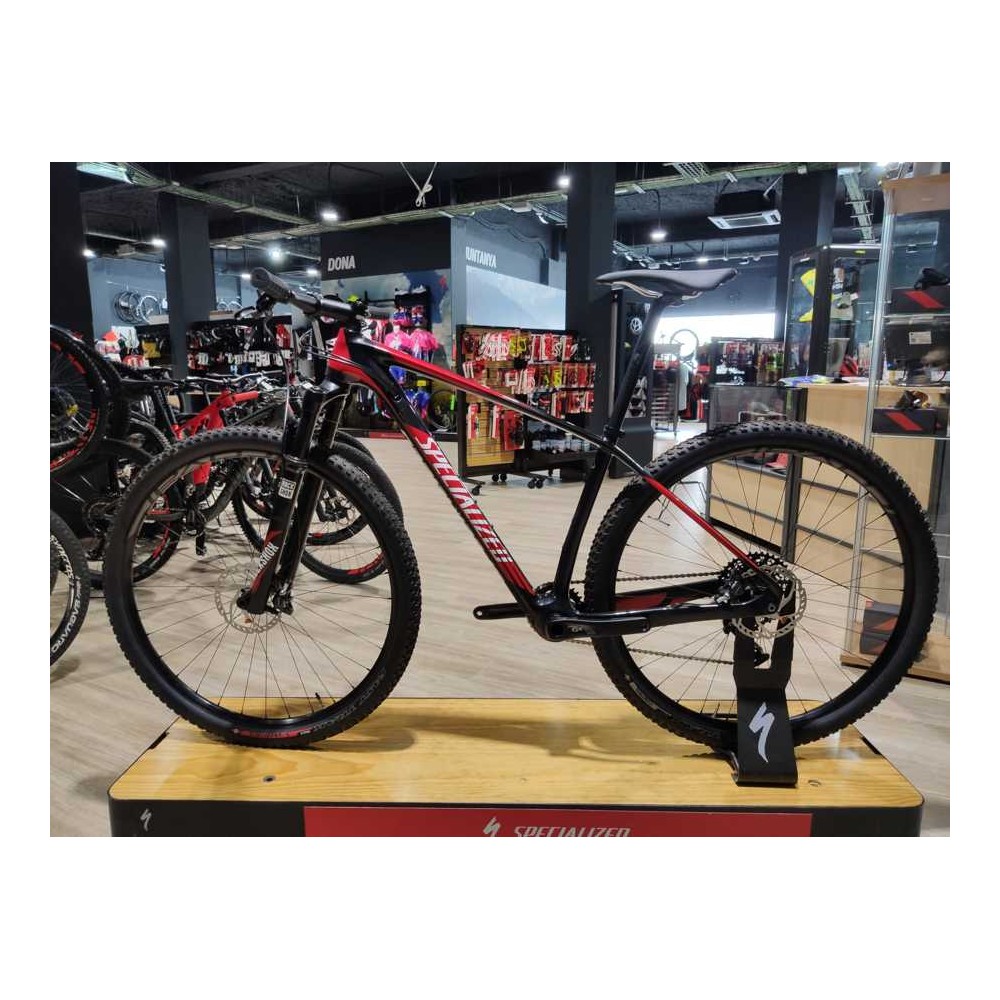

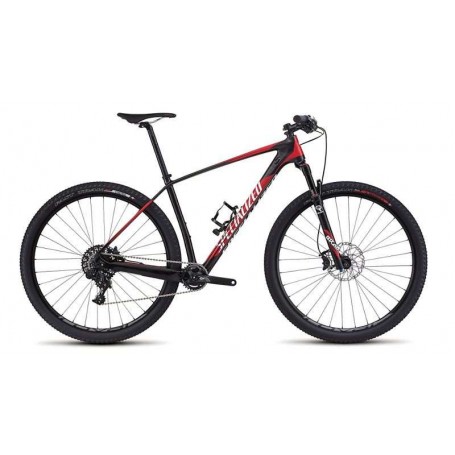

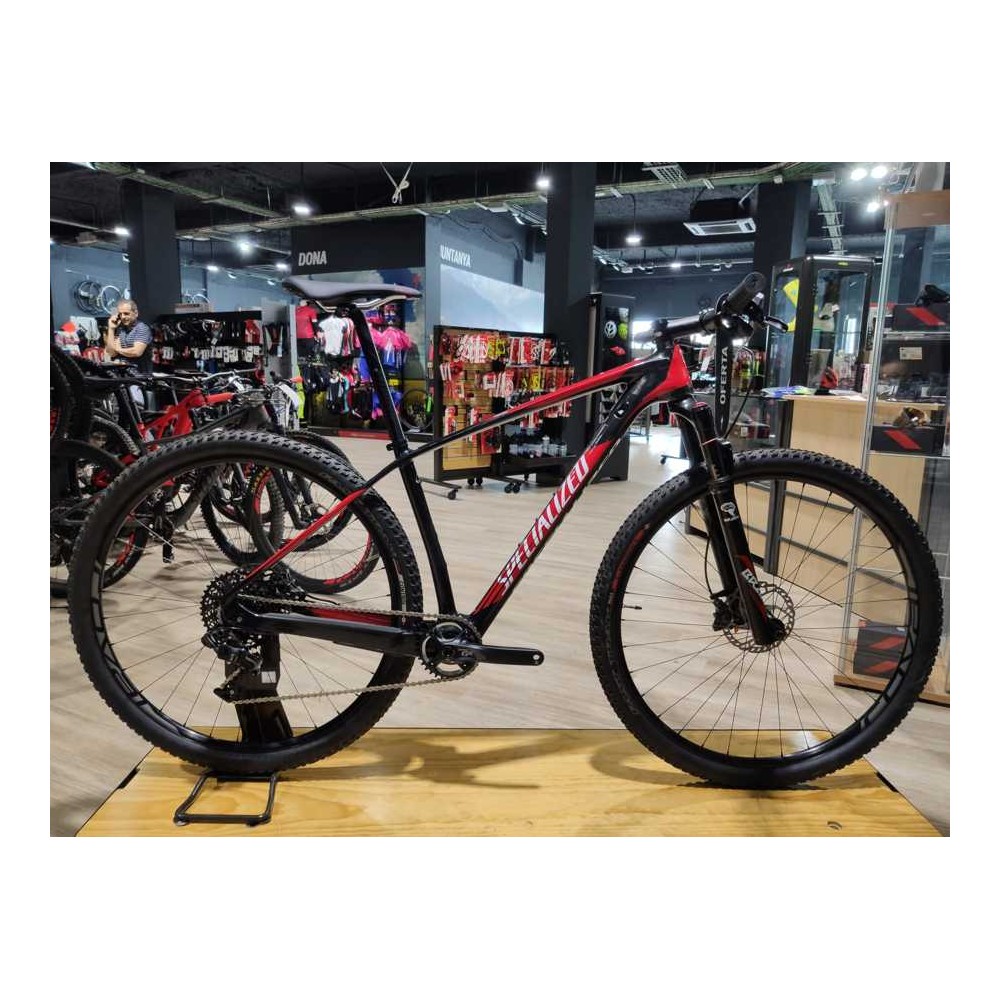

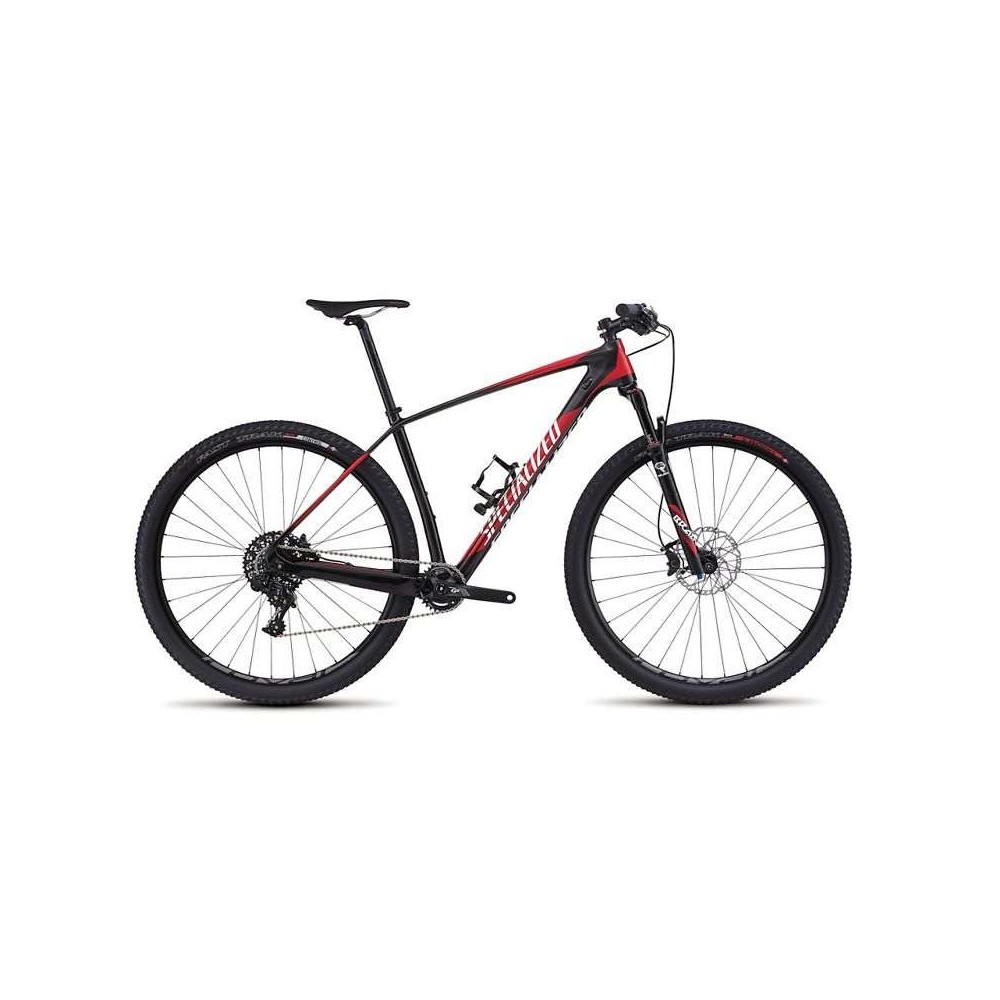

Specialized Stumpjumper Elite World Cup Bicycle 2016

Roval Control 29 aluminum wheels are lightweight, while its wide design gives it more agility and reliability in descents. The combination of FACT 9m carbon fiber frame with our World Cup XC 29 Geometry, allows the Stumpjumper to focus on having the lowest possible weight and closed angles, to obtain explosive speed and good maneuverability in competition circuits.

Technical Specifications:

• CHAIN KMC X11L, 11-speed, w/ reusable MissingLink
• BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
• CRANKSET SRAM S-1000, 11-speed, PF30, 30T X-Sync ring, 94mm BCD spider
• SHIFT LEVERS SRAM X1, 11-speed, trigger
• CASSETTE SRAM XG-1175, 11-speed, 10-42t
• REAR DERAILLEUR SRAM X1, 11-speed, alloy cage
• FRONT HUB Roval Control, 15mm end caps, 32h
• REAR HUB Roval Control 142+, SRAM XX1 XD driver body, 32h
• INNER TUBES Standard, Presta valve
• SPOKES DT Swiss Revolution
• RIMS Roval Control 29, alloy, disc, 21mm inner width, 32h
• FRONT TYRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0"
• REAR TYRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0"
• SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
• SEATPOST Specialized, alloy, single bolt, 30.9mm
• STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
• HANDLEBARS Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm, 31.8mm
• GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
• FORK RockShox SID Brain 29, Solo Air spring, S: 80mm travel, M/L/XL: 95mm travel, bottom-mount Brain fade adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
• FRONT BRAKE Shimano SLX, hydraulic disc, metallic pads, I-spec compatible
• BRAKE LEVERS Shimano SLX, I-spec compatible
• REAR BRAKE Shimano SLX, hydraulic disc, metallic pads, I-spec compatible
• PEDALS Nylon, CEN std., w/ toe clips
• HEADSET 1-1/8" upper, 1-1/2" lower, threadless, Campy style, cartridge bearings
• SEAT BINDER Alloy, 31.6mm
• FRAME FACT 10m carbon, World Cup XC 29 Geometry, FACT IS construction, tapered head tube, carbon PF30 BB, internal cable routing, 142mm dropouts, PM 160 rear brake, replaceable alloy derailleur

Geometry:

(Size M)

• STEM LENGTH 90mm
• CRANK LENGTH 175mm
• SEATPOST LENGTH 400mm
• HANDLEBAR WIDTH 720mm
• REACH 414mm
• STACK 610mm
• WHEELBASE 1078mm
• BIKE STAND-OVER HEIGHT 799mm
• HEAD-TUBE LENGTH 100mm
• FRONT-CENTER  655mm
• FORK RAKE/OFFSET 46mm
• HEAD-TUBE ANGLE  71°
• TRAIL 79mm
• B-B HEIGHT 310mm
• CHAIN-STAY LENGTH 430mm
• FORK LENGTH (FULL) 496mm
• SEAT-TUBE ANGLE  73.5°
• B-B DROP 61mm
• SEAT-TUBE LENGTH 434mm
• TOP-TUBE LENGTH (HORIZONTAL) 593mm

* Specifications are subject to change without notice
