Specialized Pitch 27.5 INT Bike View larger

Specialized Pitch 27.5 INT Bike

AGR-02S95520-7

New

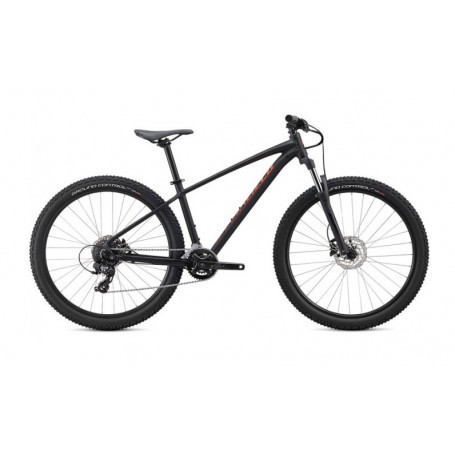

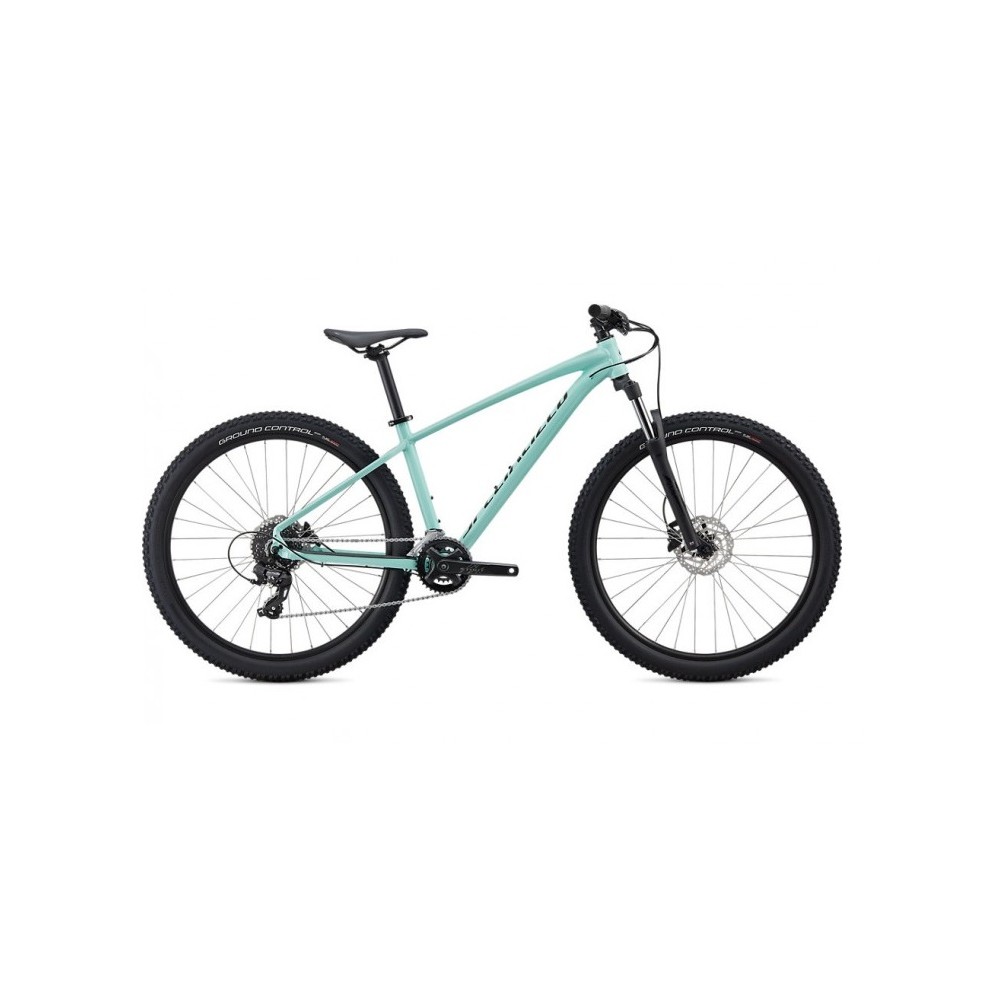

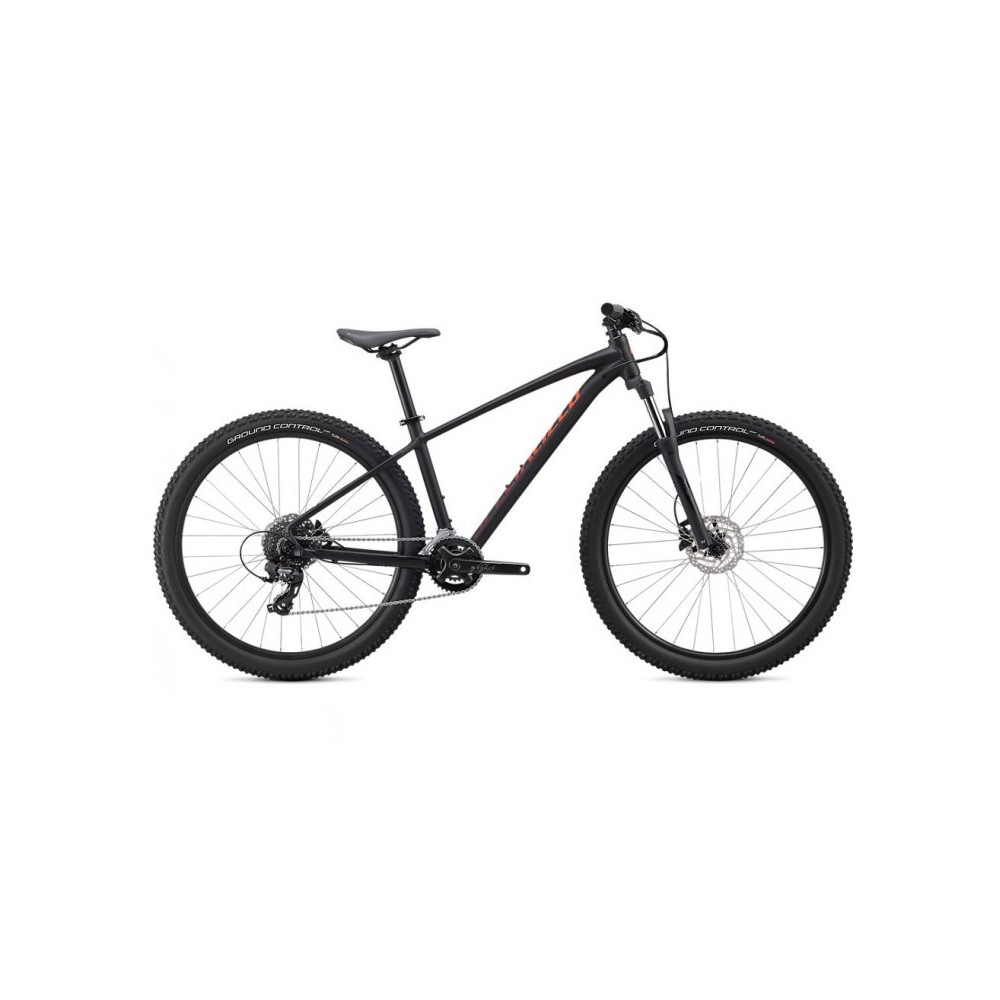

Specialized bicycle Pitch INT model for Mountain Bike with 27.5 inch wheels and lightweight A1 Premium aluminum frame. 2020 season. Available in various colors and sizes.

More details

This product is no longer in stock

479,00 € tax incl.

Data sheet

GenderMan
SeasonTemporada 2020
KindMTB
Wheel27.5
FamilyPitch
FrameAluminium

More info

With the Pitch INT bike, you will enjoy a mountain bike. It has an aluminum structure A1, durable and perfect, in addition to our Sport Trail 27.5 Geometry, which guarantees you confidence and comfort on any terrain.

Frame made of lightweight A1 Premium aluminum to offer flexibility and durability and thus achieve a very versatile bike.

It also has the SR Suntour XCE fork and its Shimano rear derailleur that provides a crisp and reliable change. With it you can face any slope or descent.

Technical specifications:

  • MODEL: 2020.
  • TABLE: Premium A1 Aluminum, Sport Trail 27.5 geometry, zero-stack steerer, internal cable routing, forged 135x9 mm toecaps, sheath-mounted disc brake, replaceable alloy shift pin.
  • FORK: SR SunTour XCE 28, Rx Tune, coil spring, 42 mm offset, 80/100 mm travel (depending on size).
  • FRONT TIRE: Ground Control Sport, 60 TPI, wire cord, Flak Jacket flat protection, 27.5 x 2.3 ".
  • REAR TIRE: Ground Control Sport, 60 TPI, wire cord, Flak Jacket flat protection, 27.5 x 2.3 ".
  • HANDLEBAR: Stout 2x, forged alloy.
  • DISHES: 36 / 22T.
  • PEDALS: 73mm square tapered internal bearings.
  • REAR CHANGE: Shimano Tourney TX, 8 speed
  • CHAIN: KMC X8 EPT, antioxidant coating, 8 speeds with reusable Missing Link ™
  • FRONT BRAKE: Shimano BR-MT200, hydraulic disc
  • REAR BRAKE: Shimano BR-MT200, hydraulic disc
  • SEAT: Alloy, 12 mm offset, 2 bolt clamp, 30.9 mm
  • SEAT ADJUSTMENT: Alloy, QR clamp, 34.9 mm
  • FRONT HUB: Shimano, Center Lock ™ disc, 9x100 mm spacing, quick release, 32 h
  • REAR HUB: Shimano, Center Lock ™ disc, 9x135 mm spacing, quick release, 32 h Speak Stainless, 14g
  • RIMS: Stout Trail 27.5, alloy, single disc, double wall, internal width of 25 mm, 32 h
  • GRIPS: Specialized MTB grip, lock
  • TRIPPER: Shimano Tourney FD-TY710


Measurements:

                                        XS    /    S    /    M    /    L    /    XL

  • Crank Length 165mm / 170mm / 175mm / 175mm / 175mm
  • POWER LENGTH 45mm / 45mm / 60mm / 70mm / 80mm
  • SEAT LENGTH LENGTH 350mm / 400mm / 400mm / 400mm / 400mm
  • SADDLE WIDTH 143mm / 143mm / 143mm / 143mm / 143mm
  • HANDLEBAR WIDTH 720mm / 740mm / 740mm / 740mm / 740mm
  • REACH 380mm / 400mm / 420mm / 440mm / 460mm
  • UPPER TUBE LENGTH, HRZ. 542mm / 572mm / 599mm / 625mm / 649mm
  • STACK 562mm / 562mm / 585mm / 604mm / 618mm
  • DISTANCE BETWEEN AXLES 1063mm / 1083mm / 1112mm / 1139mm / 1165mm
  • SHEATH LENGTH 435mm / 435mm / 435mm / 435mm / 435mm
  • FRONT CENTER 631mm / 651mm / 680mm / 708mm / 733mm
  • FALL PEDALIER 43mm / 43mm / 43mm / 43mm / 43mm
  • PEDALIER HEIGHT 310mm / 310mm / 310mm / 310mm / 310mm
  • SEAT TUBE ANGLE 74 ° / 73 ° / 73 ° / 73 ° / 73 °
  • PIPE ANGLE 68.5 ° / 68.5 ° / 68.5 ° / 68.5 ° / 68.5 °
  • LONG SEAT TUBE 310mm / 360mm / 415mm / 450mm / 510mm
  • PIPE LENGTH 95mm / 95mm / 100mm / 120mm / 135mm
  • BIKE STANDOVER HEIGHT 660mm / 690mm / 739mm / 766mm / 808mm
  • FORK / REVERSE FORK 42mm / 42mm / 42mm / 42mm / 42mm
  • FORK LENGTH 475mm / 475mm / 495mm / 495mm / 495mm
  • FORK FORWARD 94mm / 94mm / 94mm / 94mm / 94mm

* Specifications are subject to change without notice
